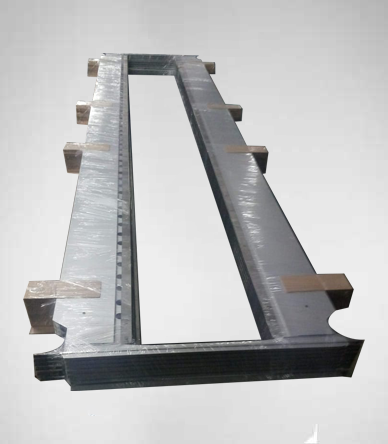

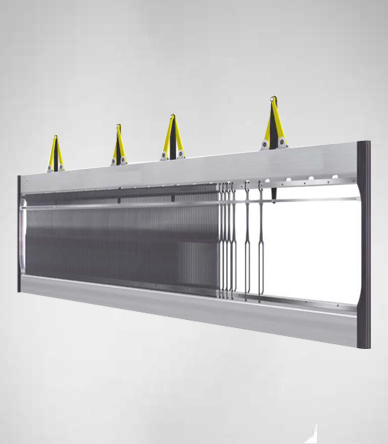

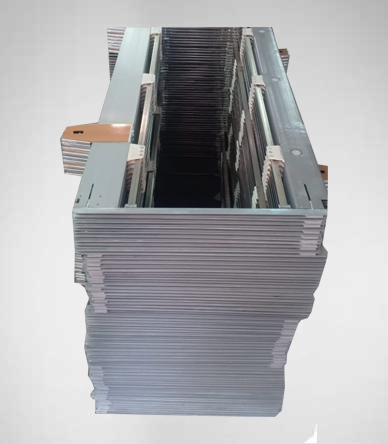

Heald Frames

Loom Name	Heald Frame Size	Profile
China Rapier Loom	190 cm, 200 cm, 210 cm, 220 cm	90*9, 84*9
Ruti c type loom	120 cm, 180 cm, 220 cm, 280 cm, 350 cm	72*9, 84*9
Ernst Handel	Roland Mendel	Austria
Dornier, Picanol, Tsudakoma, Vamatex, Toyota, Sulzer Looms	190 cm, 210 cm, 220 cm, 230 cm, 250 cm, 340 cm	96*9, 120*9, 152*9, 155*9, 90*9, 68*9

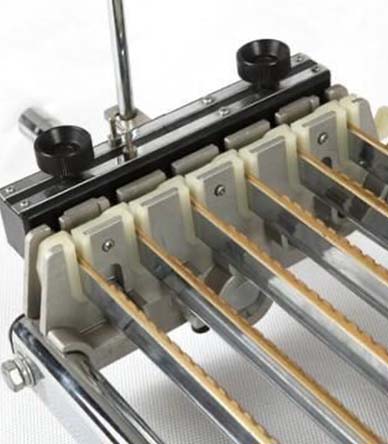

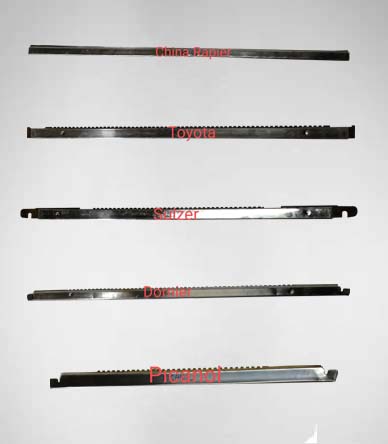

Warpstop Motion (WSM)

Loom Name	Size
China Rapier loom	Standard 20.5 mm height, 4 mm Thickness
Ruti C type loom	1410 mm, 2010 mm, 2410 mm, 3010 mm, 3710 mm
Picanol, Tsudakoma, Vamatex, Toyota looms	23.5 height, 4 mm thickness

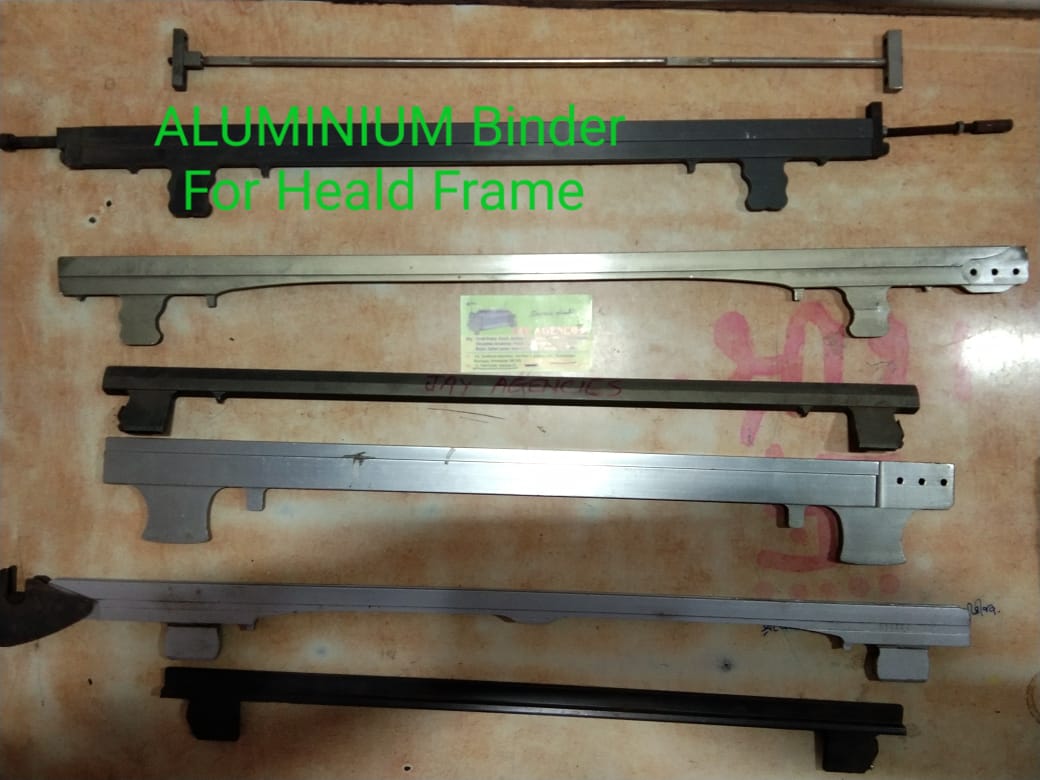

Side Supports

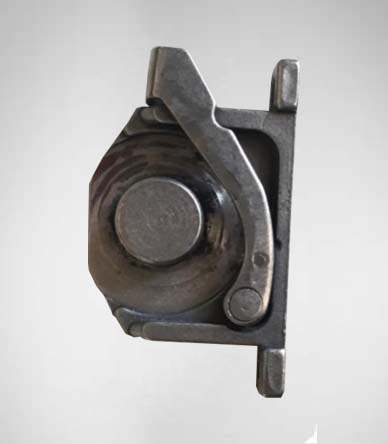

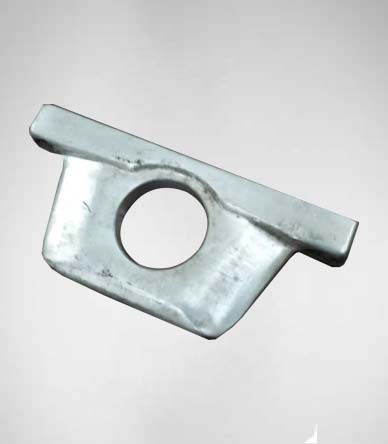

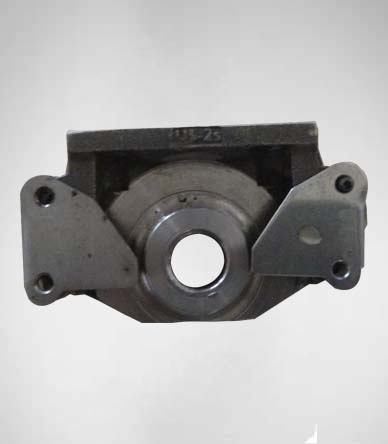

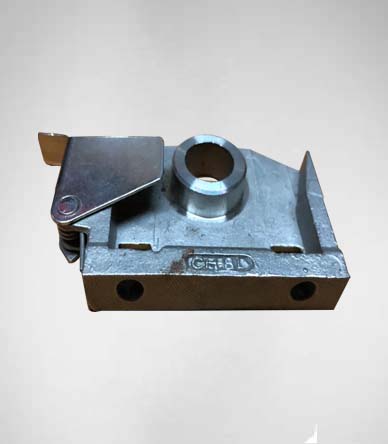

Frame Locks

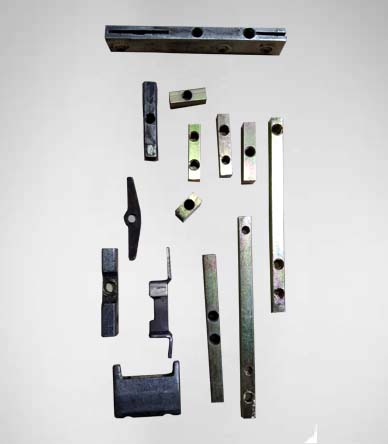

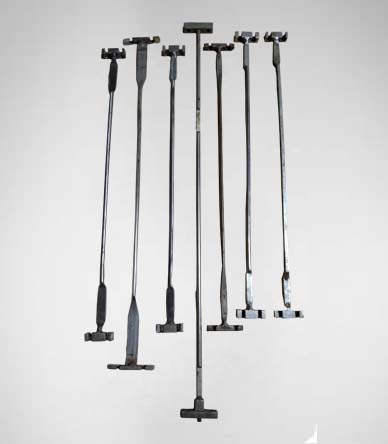

Center Supports
